High Pressure Air Driven Liquid Pumps
GAT Series

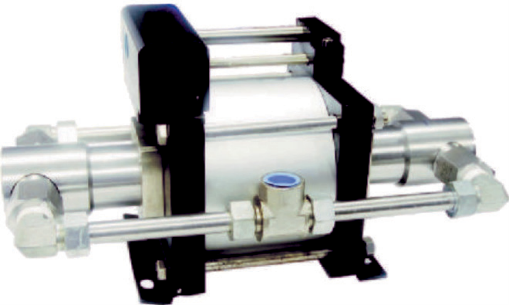

GAT Series Air Driven Liquid Pump:
The GAT series of liquid pumps are double acting single 160mm air drive units that are capable of pressures in excess of 45,000 PSI / 3,200 BAR. The Gretec Pump model number reflects the pumps nominal pressure ratio , while the technical data indicates exact ratios. The outlet stall pressure is easy to set by adjusting the air drive pressure and by simply multiplying the pressure ratio by the air drive pressure, the nominal liquid pressure can be calculated.
Features
- Stainless steel wetter materials of construction
- Specialised construction materials available
- Polyurethane pressure seals as standard
- UHMWPE, PTFE & other special seals available
- Separation & drainage between hydraulic & pneumatic seals
- No airline lubrication required
- Compact and lightweight
- Suitable for most hazardous areas
- Available as a complete packaged system (PP3)
| Image | Product | Code | Price | |
|---|---|---|---|---|
|
GAT10 1203 psi/83 barg | GAT10 | CAD2,590.00 each | Product details |
|
GAT16 1925 psi/132 barg | GAT16 | CAD2,808.00 each | Product details |
|
GAT20 2407 psi/166 barg | GAT20 | CAD2,509.00 each | Product details |
|
GAT28 3,369 psi/232 barg | GAT28 | CAD2,406.00 each | Product details |
|
GAT40 4,814 psi/332 barg | GAT40 | CAD2,446.00 each | Product details |
|
GAT80 9,628 PSI/664 barg | GAT80 | CAD2,560.00 each | Product details |
|
GAT100 12,035 psi/830 barg | GAT100 | CAD2,488.00 each | Product details |
|
GAT130 15,645 psi/1079 barg | GAT130 | CAD2,508.00 each | Product details |
|
GAT170 20,459 psi/1411 barg | GAT170 | CAD2,508.00 each | Product details |
|
GAT240 28,884 psi/1992 barg | GAT240 | CAD2,590.00 each | Product details |
|
GAT300 36,105 psi/2490 barg | GAT300 | CAD2,601.00 each | Product details |
|
GAT400 48,140 psi/3320 barg | GAT400 | CAD2,610.00 each | Product details |
